Pylons And Adapters
Overview
Kinetix Healthcare provides a full selection of prosthetic pylons, adapters, and modular connectors essential for assembling and aligning lower-limb prostheses. All components are precision-manufactured to meet international 30 mm modular standards and are available in both adult and pediatric sizes.
Our offerings support practitioners in delivering structurally sound and fully adjustable prosthetic systems — whether for routine use, anatomical correction, or pediatric growth adaptation.

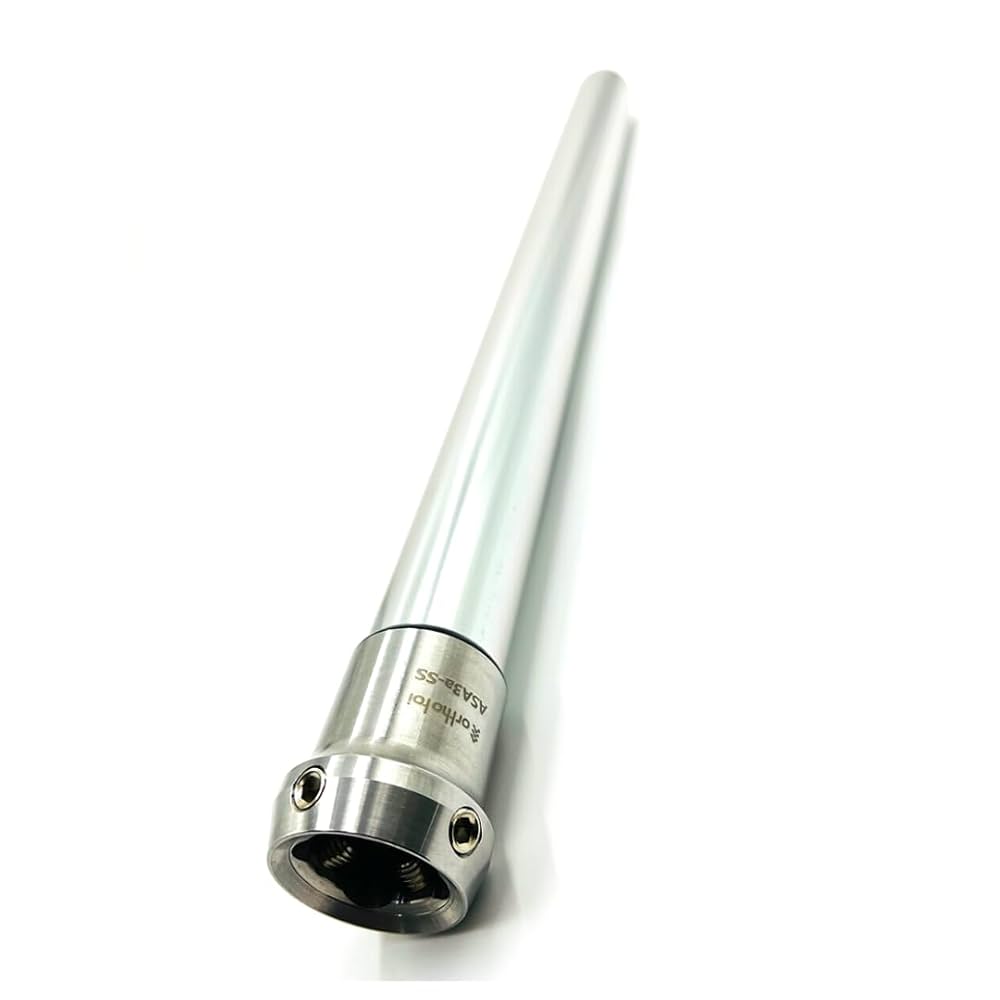

Straight Pylons – Aluminum or Stainless Steel
Use: Connects the socket to the knee or foot; provides structural support
Features:
- Standard 30 mm round tube
- Lightweight anodized aluminum or high-strength stainless steel
- Can be cut to custom length
Available Lengths: 200 mm, 300 mm, 400 mm
Outer Diameter: 30 mm
Connector: Smooth tube ends for clamp adapter
Sample SKU: ST-PYL-ALU-300-SS

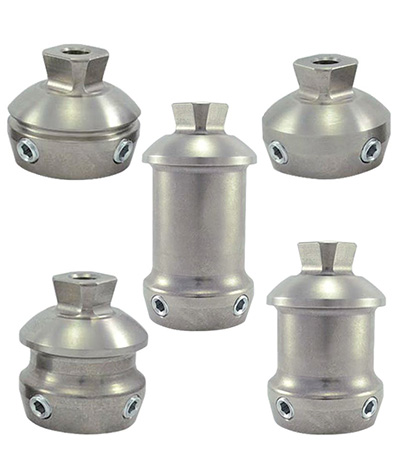

Pyramid Adapters – Male & Female
Use: Coupling of components using pyramid interface
Variants:
- Male pyramid with tube insert
- Female pyramid receiver
- Pyramid-to-pyramid adjusters
Materials: CNC-machined aluminum or titanium
Angle Adjustability (optional models): ±10°
Sample SKU: ST-ADP-PYR-FEM-AL

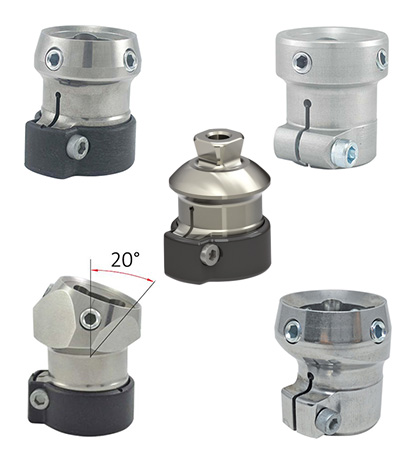

Tube Clamps & Rotational Adapters
Use: For angular or rotational fine-tuning
Features:
- Secures pylons at adjustable angles
- Available with rotation locks
- Compatible with all 30 mm tubes
Sample SKU: ST-ADP-CLMP-ROT-30MM

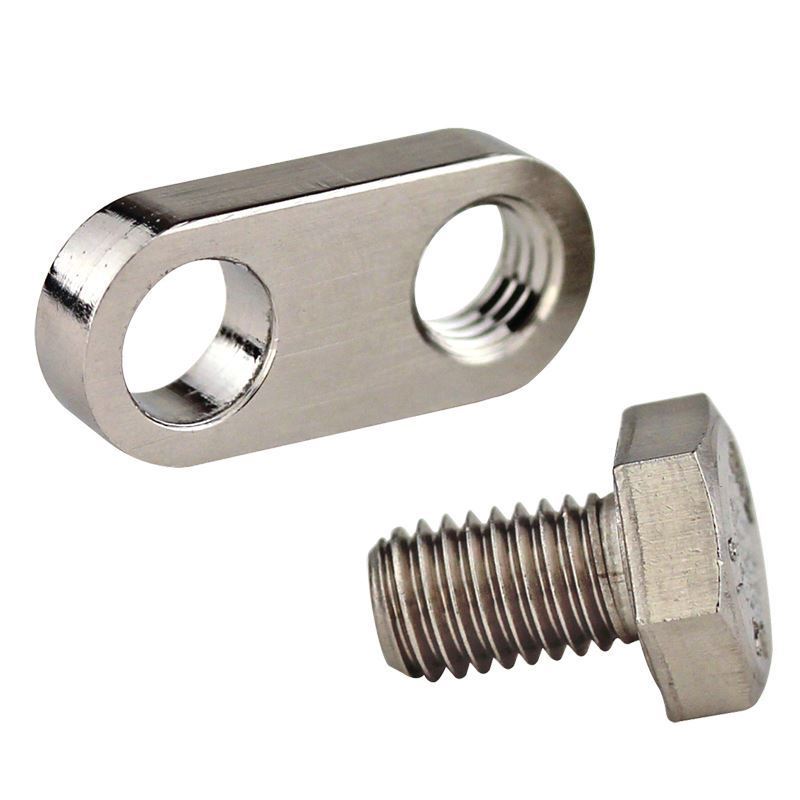

Offset Adaptors
Use: To adjust socket alignment in cases of anatomical discrepancy
Options:
- Anterior/posterior offset
- Medial/lateral offset
Offset Distance: 10 mm – 15 mm
Material: Lightweight aluminum
Sample SKU: ST-ADP-OFF-MEDIAL-10

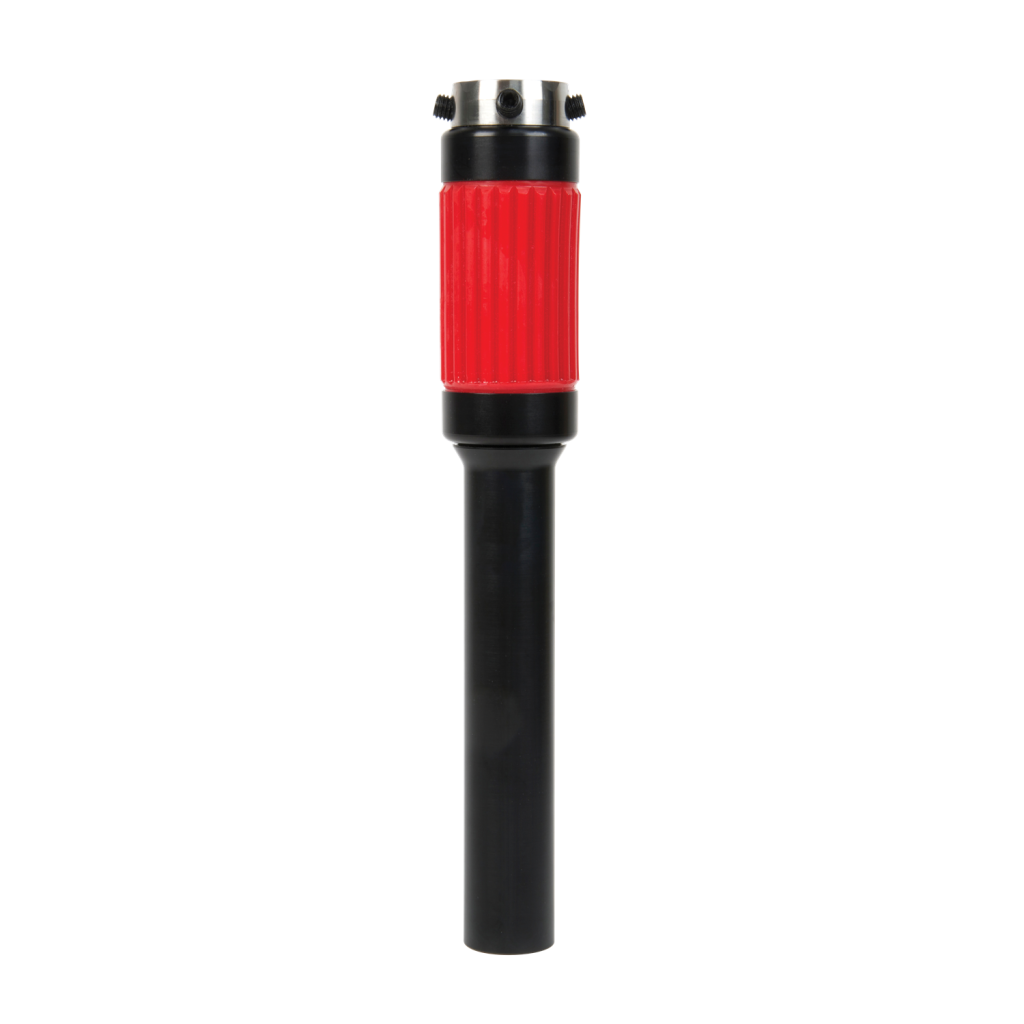

Pediatric Straight Pylons
Use: For modular lower-limb systems in children
Features:
- Reduced diameter: 20 mm or 22 mm
- Cut-to-size anodized aluminum
- Designed for smaller limb lengths and lighter loading
Available Lengths: 100 mm to 300 mm (10–30 cm)
Connector: Compatible with pediatric adapters and knees
Colors: Natural / Anodized Blue (optional)
Sample SKU: ST-PED-PYL-22-200-BLU

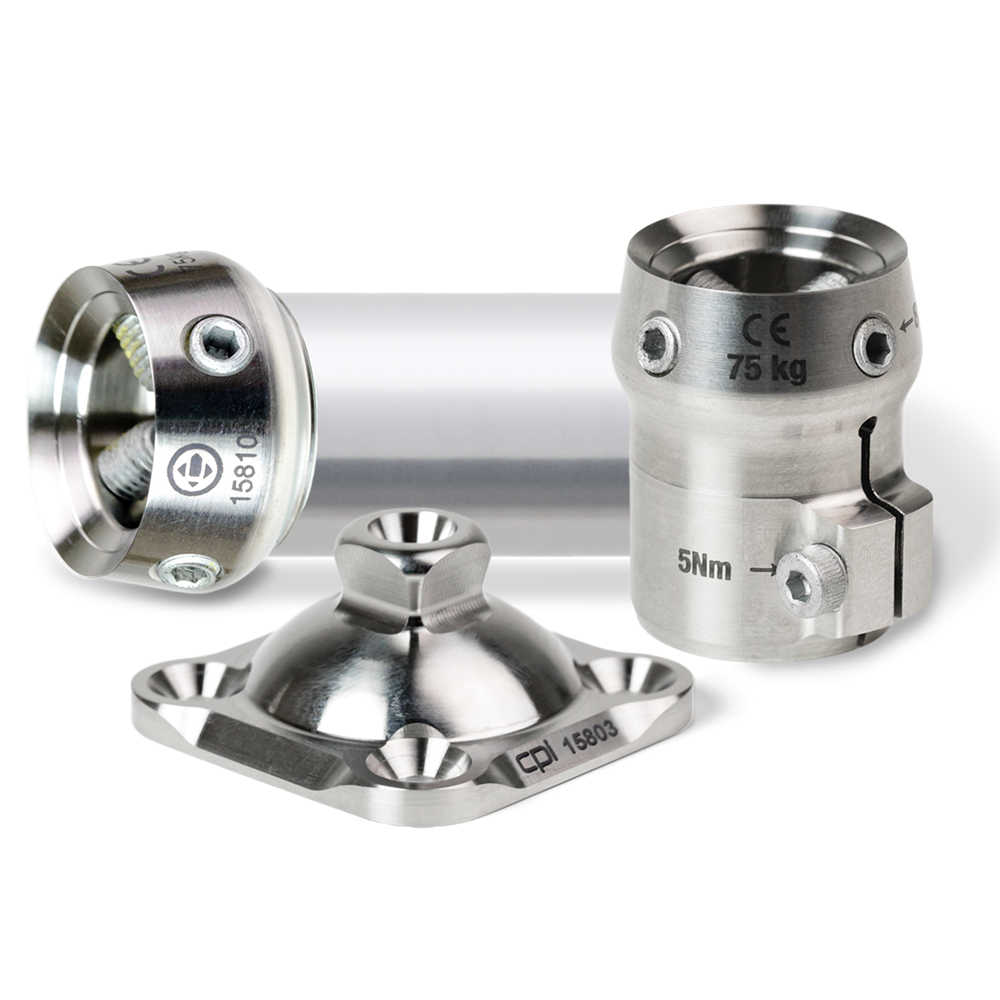

Pediatric Pyramid Adapters
Use: For connecting pediatric pylons to feet, knees, or sockets
Features:
- Smaller interface size to match reduced tube diameters
- Same mechanical reliability as adult systems
- Lightweight alloy construction
Connector Sizes: 20 mm / 22 mm
Sample SKU: ST-PED-ADP-PYR-FEM-22MM
Clinical Notes
- Use thread-locking compounds for permanent fixation
- Torque bolts to manufacturer specification
- Always check for material fatigue in long-term use
- Pediatric components should not be mixed with adult-sized connectors
Compliance & Manufacturing
- ISO 10328 structural testing
- Non-corrosive, medical-grade metals
- Compatible with most major modular prosthetic systems
